Description
dji o3 air unit goggles v2 DJI O3 Air UnitDJI O3 has been discontinued, please purchase DJI O4 Compatibility DJI Goggles 2 DJI FPV Goggles V2 DJI FPV Remote Controller 2 Descriptions Integrating DJI's cutting edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance
DJI O3 has been discontinued, please purchase DJI O4
Compatibility
Descriptions
Integrating DJI's cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. [1] It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity. [2]
Highlights
1080p/100fps H.265 Video Transmission
4K/60fps Video
155° Super-Wide FOV
Frequency Auto-Switching
Canvas Mode
Cameras
Matrix: 1/1. 7ª CMOS Effective pixels: 48 MP
Lens: Fiek of View (FOV): 155* Equivalent Focal Length: 12.7mm Focal Length. 2.34mm
Aperture: 62 8 Focus Mode: FF Focus Range: 0.6m to w
ISO range: 100-6400(Auto) 100-25600(Manual)
Snapshot: Roll Shutter
Field of View (FOV): 155°
Video resolution:
With D.I Goggles 2 4K @ 50/60FPS 2.7K @ 50160/100FPS 1080p @50/60/100FPS
With DJI FPV Goggles V2: 4K & 50/00FPS 2.7K 50/60/100/120FPS @ 1080p 50160/100/120FPS
Video Format: MP4
Electronic Image Stabilization (EIS): The product supports RockSteady technology.
Libra: Approx. 8.3 g (including coaxial cable)
Libra: Air Unit (without Camera Unit): Approx. 28g Air Unit (including Camera Unit) Approx. 36.4g
Antenna: Approx. 3g
Dimensions (L× W x H):
Transmission module: 325 x 30.5 x 11.5 mm (L x W x H)
Camera module. 21.2 x 20 x 19.5 mm (Lx W x H)
Coaxial cable: 115 mm (length ) 3-in-1 cable: 100mm(length) Antenna. 85mm (length)
Communication frequency: 2.400-2.4835 GHz (RX only) 5.725-5.850 GHz (RX and TX)
Transmission power (EIRP) : FCC: «33dBm CE. <14dBm SRRC: «30dBm
Live view quality and and delay:
With DJI FPV Goggles V2
810p/120FPS video transmission quality. less than 28ms alency.
810p/60fps video steaming quality. less than 40ms latency
With DJI FPV Goggles 2
1080p/80FPS video streeming quality:less than 30ms latency
1080p/60FPS video streaming quality: less than 40ms latency.
Video transmission range: 10km (FCC), 2km (CE) 6km (SRRC)
Flight controller software supported: Compatible with flight controller software that supports Betaflight Please see product FAQ for more information.
Input voltage: 7.4.26 4V
Working temperature: 10°C to 10°C (14°F to 104°F)
Channels: Auto mode support
Manual mode support: 40 MHz: 1 channel: 20MHz 3 channels;10MHz: 32 channels;
Channel information:
FCC / SRRO / CE: 40 MHz: Ch 1: 5794 5 MHz 20 MHz / 10 MHz: Ch 1: 5768.5MHz Ch 2: 5804.5 MHz Ch 3: 5839.5 MHz
Supported SD cards: microSD (up to 256GB)
Recommended microSD cards:
DJI Goggles supported
SanDisk Extreme U3 V30 A1 32GB
microSDXC SanDisk Extreme Pro U3 V30 A132GB
microSDXC Kingston Canvas GolPlus U3 V30 A2 64GB
microSOXCKingston Canvas React Plus U3 V90 A1 64GB
microSDXC Kingston Canvas ReactPlus U3 V90 A1 128GB
microSDXC Kingston Canvas React Plus U3 V90 A1256GB
microSDXC Samsung PRO PlUS U3 V30 A2 256GB
DJI Goggles Supported: DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI remote controllers: DJI FPV Remote Controller 2

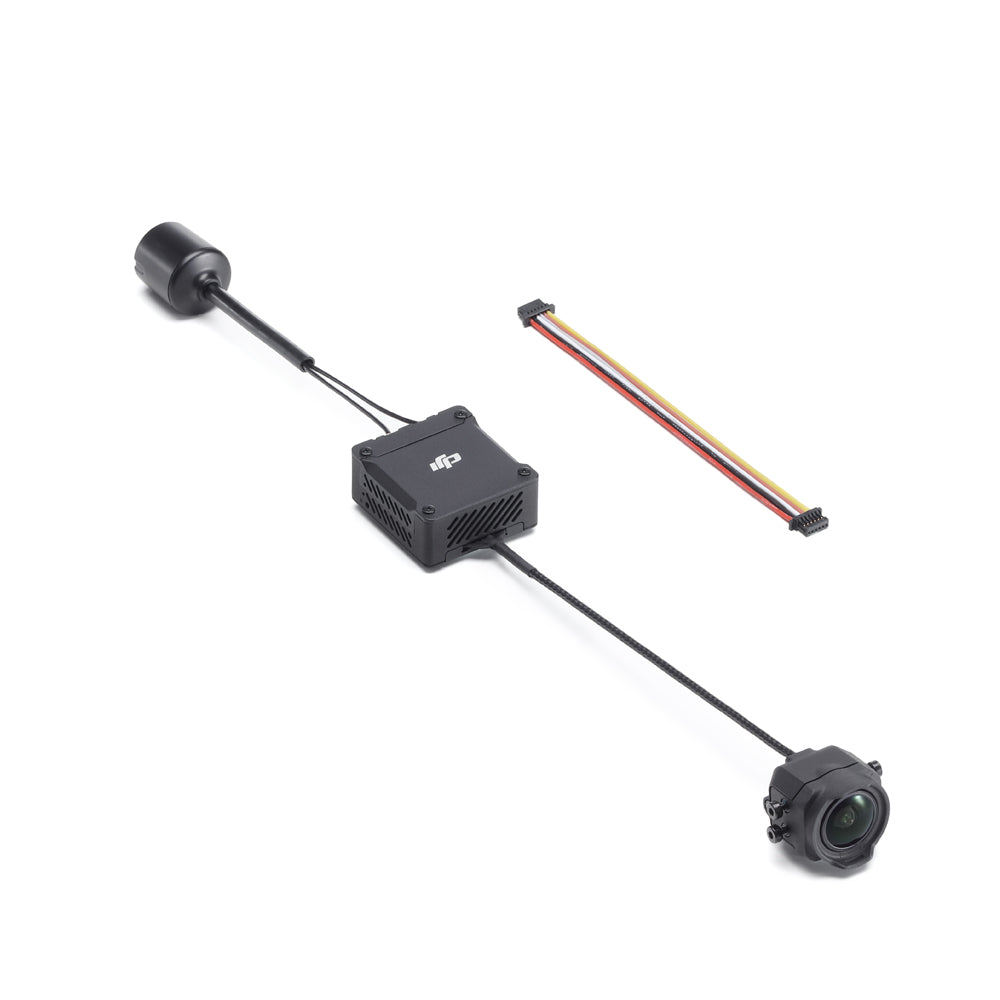

Package included
1 x DJI O3 Air Unit Camera
1 x Module de Transmission DJI O3 Air Unit
1 x Antenne DJI O3 Air Unit
1x Cable 3 en 1 DJI O3 Air Unit
